Reproduce the problem and watch the D indicator. If D flashes, test the same section from a known local drive, reduce simultaneous audio streams and use RAM Mode only for the few clips that trigger the warning. If the CPU indicator spikes without D, follow the CPU path instead. If Live cannot save or record, check destination space, path and write permission separately.
Scope checked September 9, 2026: this page diagnoses storage throughput and write failures. CPU overload, general crackling and missing media remain separate symptoms.
Resource impact
- CPU: disk overload is not CPU overload; keep the musical section unchanged while testing storage.
- RAM: RAM Mode trades disk reads for memory and belongs only on the few clips proven to trigger D.
- Disk/session size: copied Projects and collected media consume space; record their locations and preserve the original.
- Lowest-resource safe route: watch D, check the Live version, test one verified local copy, then reduce streams or try selective RAM Mode.
- Avoid unnecessary changes: do not batch-convert the only media copy or enable RAM Mode for every clip. Check the actual read path and available memory first; preserve data immediately if a drive reports errors.

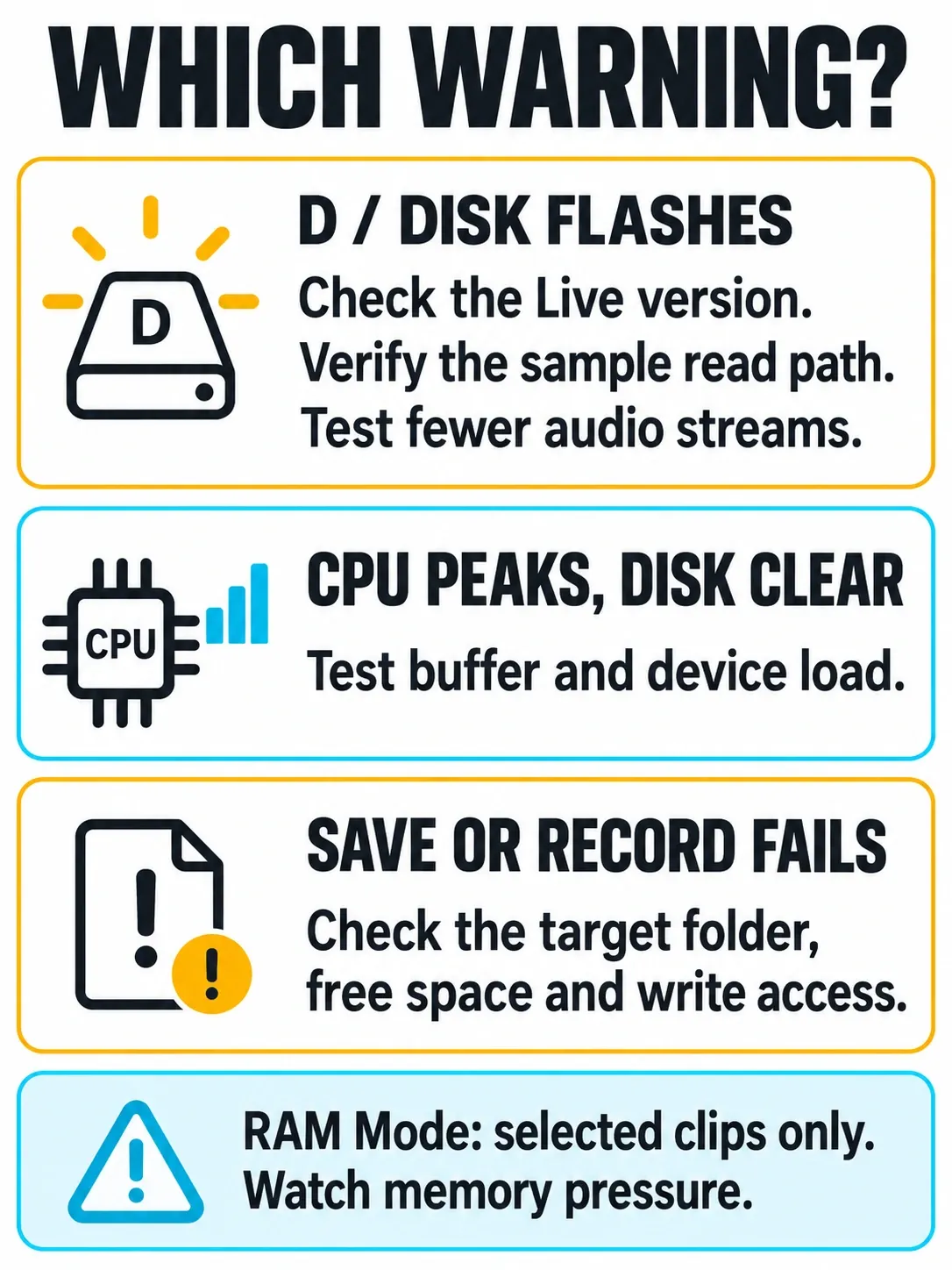

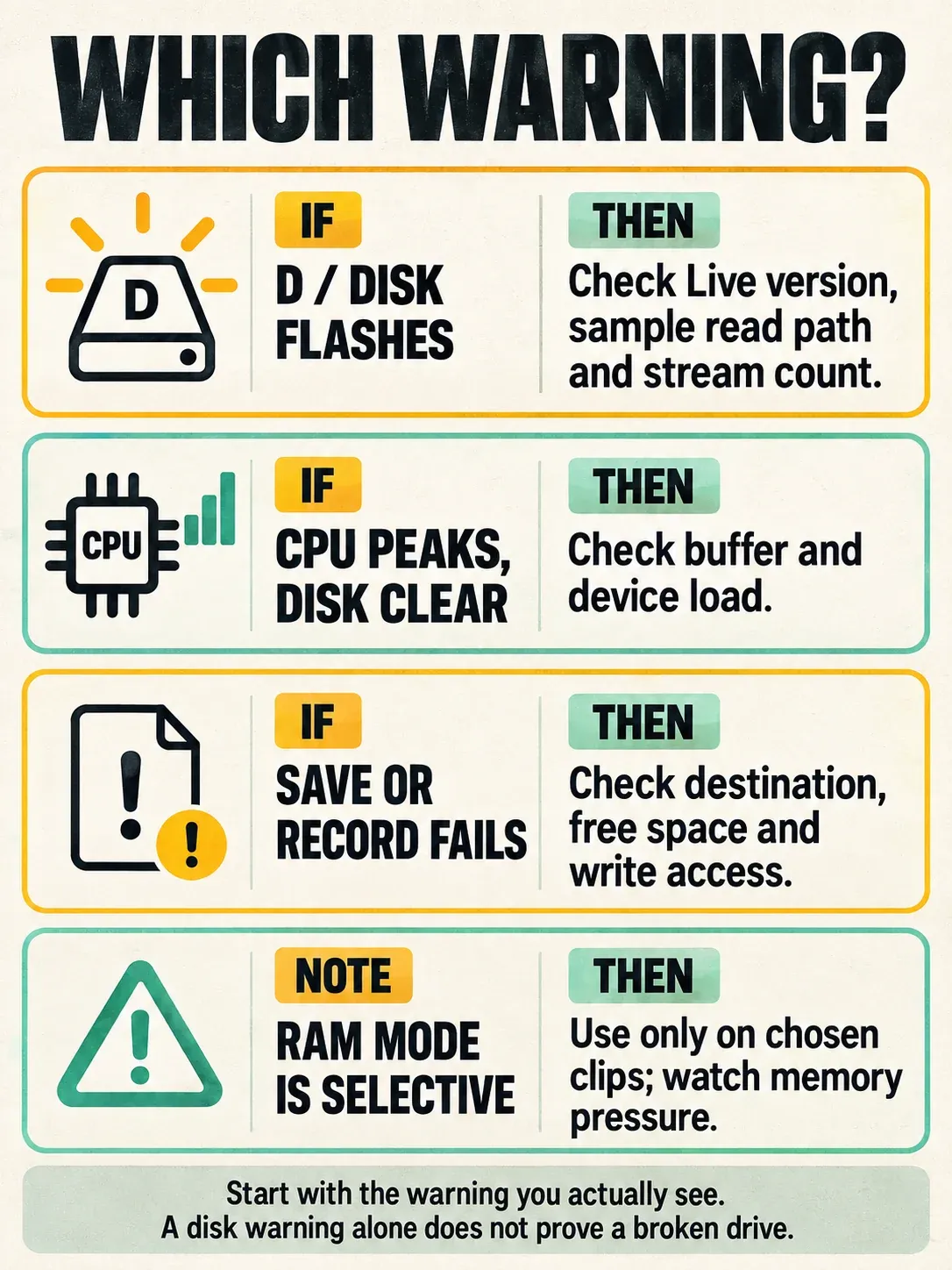

Read the indicator before applying a fix
Ableton’s current Computer Audio Resources manual defines the Disk Overload indicator as a warning that the disk could not read or write audio fast enough. Playback can drop out; recording can contain a gap. That is different from a CPU overload, where Live misses a real-time processing deadline. Depending on the Live version and illustration, the label may read D or Disk.
| Evidence | First test |
|---|---|
| D flashes at the dropout | Drive, connection, sample streams and file location |
| CPU spikes; D stays clear | Devices, voices, oversampling and buffer |
| No indicator, only one source file fails | Test a known-good copy; preserve the original |
| Save/record error | Target space, writable path and mounted storage |
Loop the smallest section that reproduces the warning. Note how many audio clips start together and whether the issue begins after a drive wakes, a cloud file downloads or a large group of stems enters.
Check the exact Live version before blaming storage. Live 12.4.5, released August 26, 2026, fixed a specific dropout and blinking-D bug involving Beats warp mode, its Transient Mode setting and playback triggered from a locator. If that matches an older installation, test an updated version with a backed-up Set. This fix is not a promise that every D warning will disappear.
If the trouble began after updating, record the old and new versions and keep the last working backup. A September 1 report on Ableton’s forum describes disk warnings after installing 12.4.5, but one user report does not establish the cause of your case. Send a reproducible example to support; do not assume a beta or a drive purchase is the answer.
Test the same media from a known local drive
Save the Set under a new name in a new Project on a known local drive with enough space, outside the original Project. Keep the original untouched. A copied .als file can still read samples from the old drive: Save As does not collect those files. Use File → Collect All and Save in the test Project and include the external media needed for this comparison.
Before comparing playback, open File → Manage Files → Manage Set → View Files. Confirm that the affected samples belong to the new Project, not the old Project, a library or another external location. Check any sample library managed inside a third-party instrument separately; collecting Live’s files does not move that library. Only then replay the same section with the same settings. If D clears, investigate the original drive, connection and background traffic. Merely reopening the copied Set is not proof of a new read path.
For compressed sources such as MP3, AAC or FLAC, also account for Live’s decoding cache. Live decodes these into temporary uncompressed files for playback. Moving the compressed originals alone does not prove that playback reads moved to the control drive. For a cleaner location test, prepare an uncompressed WAV or AIFF comparison copy, verify its reference, and compare that same file on each drive. Keep the original; conversion is a test preparation step, not a claim of better sound.
Reduce simultaneous streams before changing formats
Disk traffic grows with simultaneous audio channels. Lower your listening level before changing tracks or routing. For a stream-count test, use a disposable copy of the Set and temporarily remove half of its source audio tracks; do not delete any audio files from storage. Replay the problem section, then reopen the unchanged test baseline before trying another group. Watch D as well as CPU: removing tracks also changes processing and possibly routing, so this is an isolation test, not a disk-speed benchmark. Muting tracks alone is not a reliable demonstration that their disk reads stopped.
During multitrack recording, record only the channels you need and select a mono input for a mono source. Recording one channel instead of a stereo pair reduces written audio data. Merely disabling unused inputs in the configuration is not proof that disk writes changed; check which tracks are actually recording. Do not convert stereo material to mono merely to hide a warning when stereo information matters.
Change sample format only after the control test
For uncompressed audio, fewer channels, a lower file sample rate or a lower bit depth mean less source data. Ableton’s disk-overload guidance includes these options. Changing the recording bit-depth setting affects new recordings, not files already in the Set; existing files require a separate conversion. Likewise, lowering the audio-interface sample rate does not rewrite your existing sample files.
If conversion is worth testing, use separate copies of the media and compare the same passage before committing. Preserve the originals, avoid changing several settings together and listen for changes in sound. Keep stereo sources stereo where the channel difference matters. A smaller file reducing the warning does not establish that the original drive is healthy.
Use RAM Mode selectively

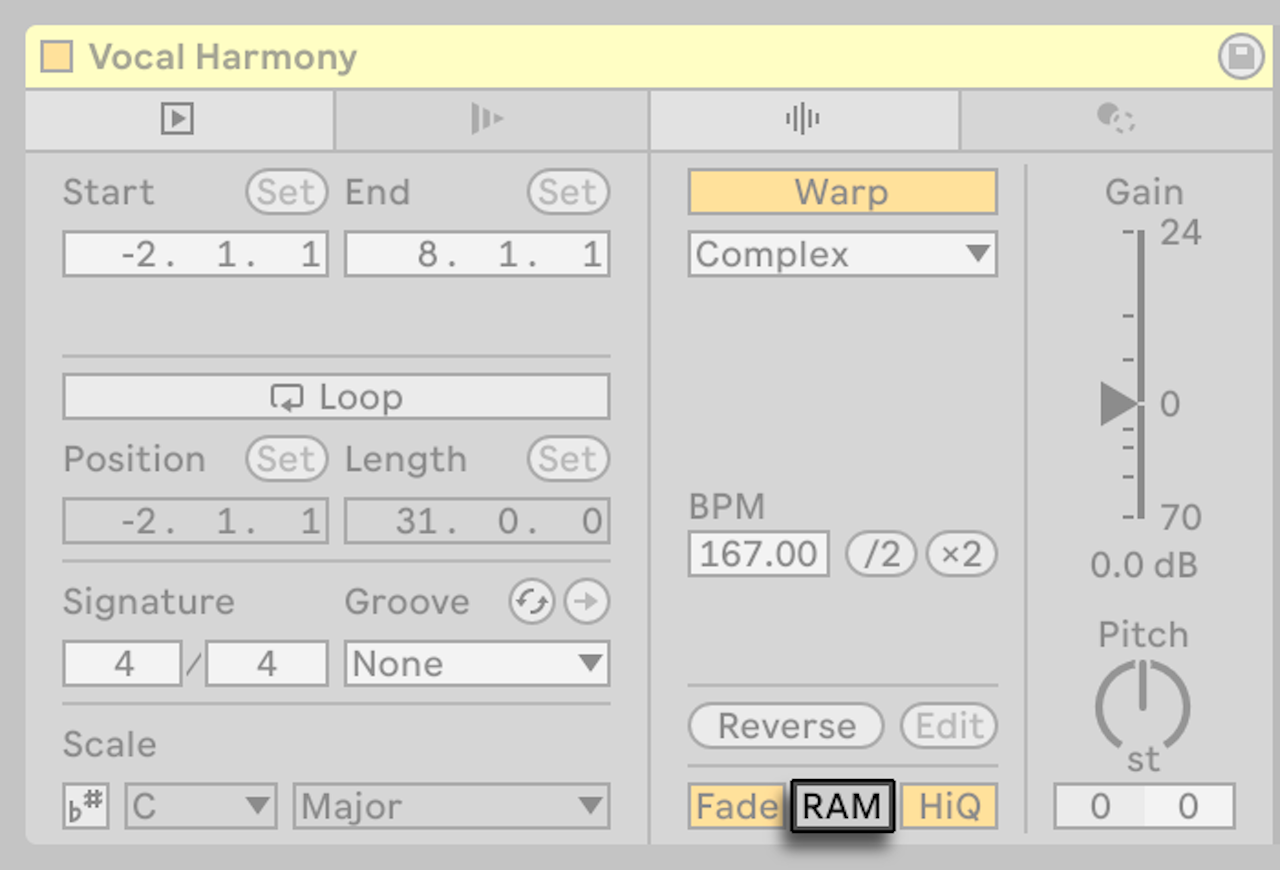

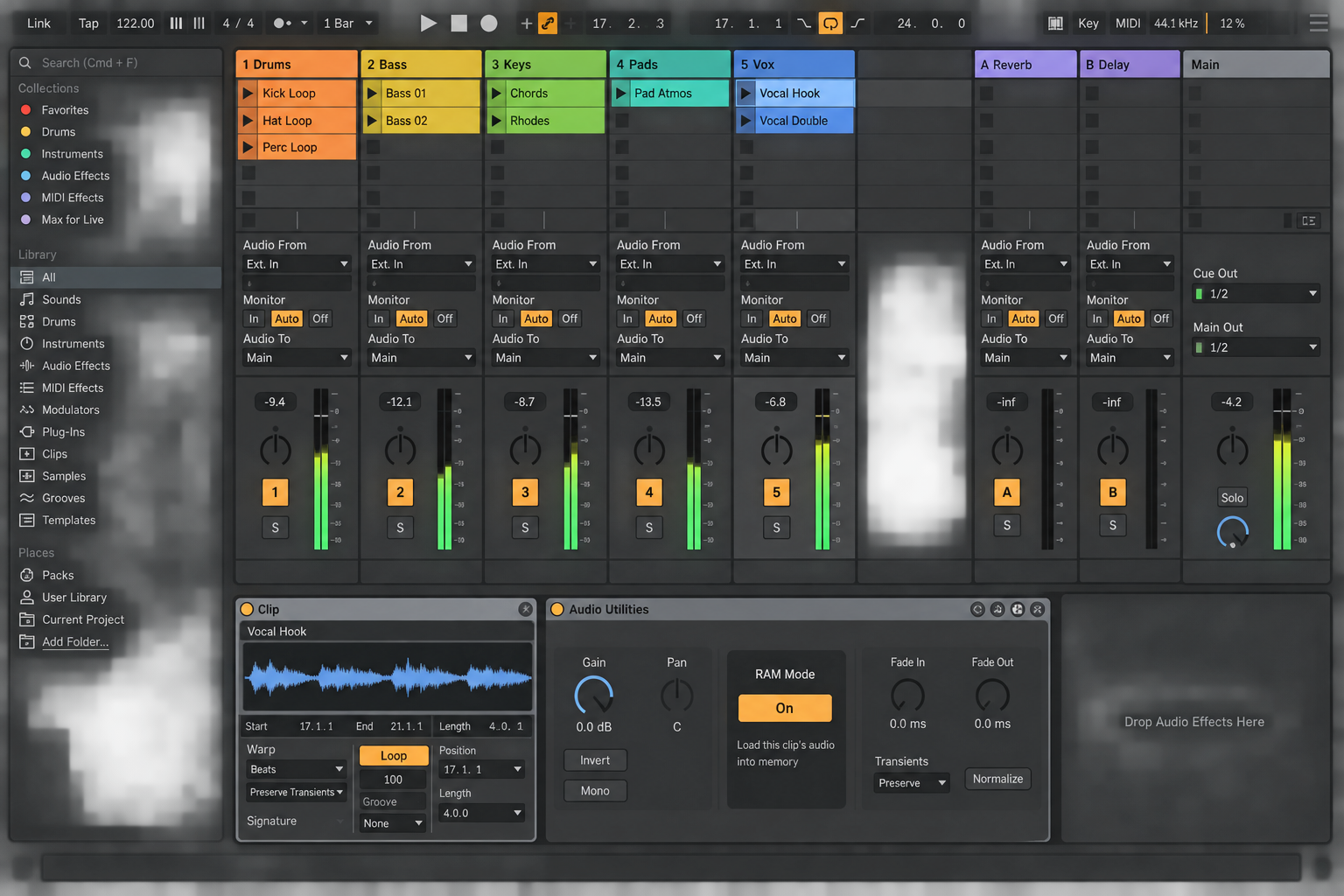

In Live 12, open an audio clip’s Audio Utilities panel and enable its RAM toggle. The Clip RAM Mode manual explains that the referenced audio is loaded into memory instead of streamed from disk. Large numbers of RAM-enabled clips can create memory pressure and swapping, which can make playback worse.
- Identify a repeatable D flash.
- Enable RAM Mode for one likely clip.
- Replay the same section.
- Stop when the warning clears; do not enable RAM Mode for the entire Set.
- Watch system memory pressure before adding more.
If D appears while a MIDI instrument plays, inspect the instrument rather than looking for an audio-clip RAM toggle. In a Drum Rack, first identify which device is playing the affected sample. Ableton Sampler’s RAM control is in its Sample tab and loads the entire multisample into memory, not just one selected key. Test one Sampler instance only if memory allows, and undo the change if memory pressure rises or playback does not improve. Do not assume Simpler, Drum Sampler or a third-party instrument uses the same control; check the actual device’s documentation.
Check free space without inventing a universal threshold
The Live 12 file-management manual notes that nearly full storage can create throughput problems. Free space is also needed for recording, freezing, consolidation, temporary renders and collected copies.
Check the actual volume used by the Project, recording destination and temporary work—not only the sample drive. Move completed archives to safe storage if needed, but do not delete Project media during diagnosis. Emptying caches or backups without a verified restore path is not a first step.
Separate save errors from playback overload
If playback is clean but Save, Freeze or Record fails, test a short, local, writable destination:
- confirm the target volume is mounted;
- confirm the folder allows your account to create a small file;
- avoid a cloud-only or disconnected path;
- use a short filename and known local folder for the test;
- save a new version rather than overwriting the only Set.
A permission or path failure can look like a space problem even when another drive has plenty of capacity. Test the exact target Live is using.
Do not expect Collect All and Save to raise throughput
Collect All and Save copies selected categories of referenced media into the Project; it does not increase a drive’s speed. It can support the local-drive comparison above, but only after the affected files really reference that location. Allow room for the collected copies and retain the original Project and its dependencies.
Run a one-variable drive test
Create a duplicate test Set and keep the problem section unchanged. Record the result of each change: source volume, connection, number of active audio channels, RAM-enabled clips and whether D flashed. Change only one field per run. A test that simultaneously moves the Project, raises the buffer, freezes tracks and enables RAM Mode cannot tell you which action mattered.
For an external drive, connect it directly for the control run. Use the same cable and port long enough to replay the entire problem section, not only the first bar. If the drive disconnects, mounts read-only, reports operating-system errors or corrupts files, stop using it as the working copy and preserve the data before further testing. Live troubleshooting is not a substitute for a storage-health diagnosis.
For a cloud-backed Project, confirm that every required sample is actually local. A visible placeholder is not the same as a file ready for sustained playback. Pause synchronization only for the controlled test if doing so does not risk unsynced changes, and work from a copied local Project.
Know when hardware is actually the bottleneck
The same Set working from a verified faster location is stronger evidence for a storage-path bottleneck than the drive’s advertised speed. Before buying hardware, check the cable, hub, sleep settings, free space and competing backup traffic. An SSD can help with sustained sample playback, but it does not rule out connection problems or a software bug. If the drive reports errors or corrupts files, prioritize preserving data rather than repeating playback tests.
If both locations fail at the same musical moment while D remains clear and CPU rises, storage is not the leading suspect. If D flashes only when dozens of stems start together, reduce or consolidate streams where that preserves the editability you need. Keep the original multitrack Project so the performance fix remains reversible.
Keep the repair proportional
Keep the test that actually changed the result: the verified media location, fewer concurrent streams or RAM Mode on selected clips. Remove experimental changes that did not help. If the warning remains, keep a small reproducible Set and record the Live version, file locations and exact moment of the dropout for Ableton support.
Return to the Fix Ableton Live hub when the symptom points to CPU, routing, missing media or plug-ins instead.
FAQ
What does the D indicator mean in Ableton Live?
The D indicator means audio could not be read or written fast enough for the current demand. Playback can drop out and recordings can contain gaps. It does not by itself prove physical drive failure: software bugs can also produce a blinking D indicator.
Is Ableton disk overload the same as CPU overload?
No. Disk overload concerns audio read/write throughput, while CPU overload concerns completing real-time processing on time. Watch which indicator flashes and test the same section before applying a fix.
Should I turn on RAM Mode for every Ableton clip?
No. RAM Mode can remove selected samples from the disk-streaming load, but those files then use memory. Apply it only to the few clips that trigger the warning and watch memory pressure.
Can an external drive cause Ableton disk overload?
Yes. The drive, cable, hub, sleep behavior or competing file transfers can interrupt sample delivery. Compare the same section on a local control drive only after verifying that the affected samples reference that drive. A copied Set that still reads the old files is not a valid comparison.
Why can Ableton fail to save when the sample drive plays normally?
Saving and recording require writable space and permission at their target paths. Check the destination, free space, write permission, mounted state and cloud availability separately from playback throughput.
Does Collect All and Save fix disk overload?
Not automatically. It copies selected referenced media into the Project, not faster storage performance. It can help test a different drive, provided the affected files now reference that Project. Allow space for the copies and keep the original media safe.
