Replay a short section that crackles and watch Current CPU and the Disk Overload indicator. If processing peaks coincide with the fault, try a larger buffer or isolate a demanding device. If Disk lights up, check the sample and recording paths. Clean playback through another output is a useful comparison, but it does not prove the interface is broken.
Checked September 8, 2026, against Live 12 documentation and the 12.4.5 release notes. This guide covers crackles, pops and brief gaps while the audio engine runs. For complete silence with moving meters, use the output-routing checks; for a disabled engine, use the audio-engine recovery steps.
Capture four clues before changing anything
Make the fault repeatable. Choose the busiest 10–20 seconds of the Set, turn Loop on, and note exactly what happens. “Ableton sounds bad” is not diagnostic; “one click when the chorus begins, Current CPU jumps, D stays dark” is.
- CPU: enable Current as well as Average in the CPU meter’s menu. Note whether the peak coincides with the glitch.
- Track: enable Performance Impact in Live 12’s Mixer Config menu. Look for tracks whose relative load rises during the fault.
- Disk: watch the Disk Overload indicator in the Control Bar. Some illustrations label it D; the current help illustration below reads Disk.
- Output: write down the device, driver, buffer and sample rate before comparing built-in playback with the external interface.
| Evidence during the glitch | First branch to test |
|---|---|
| Current CPU spike; Disk stays dark | Buffer, high-impact track or plug-in |
| Disk lights up | Storage path and simultaneous audio streams |
| Stable on built-in output | Compare driver, buffer and sample rate; then test connection and interface configuration |
| Only one Set or track fails | Device chain, Warp mode or project-specific routing |
| Only the recorded file contains gaps | Disk write path, input path and recording load |
Keep a short test log: passage, Current/Average CPU, Disk state, driver, output device, buffer, sample rate and the one change you tried. Restore changes that do not help. That record is more useful to support than a list of settings changed together.
Check whether the click is already in the audio
A click exactly at a clip edge may be an edit rather than a buffer failure. In Arrangement View, inspect the source and add or adjust a short fade where needed. The manual’s audio-clip fades section explains the handles. Listen to the attack afterward: an oversized fade can soften a kick or other transient.
For a Set without external hardware in the signal path, export a short test and listen in another player. If the same click remains at the same position, investigate the source, edit or processing; if it disappears, real-time playback deserves more attention. This comparison is a diagnostic clue, not proof—some devices behave differently between passes. Follow the export checks for a controlled render and check levels through the device chain if the sound is distortion rather than a brief gap.

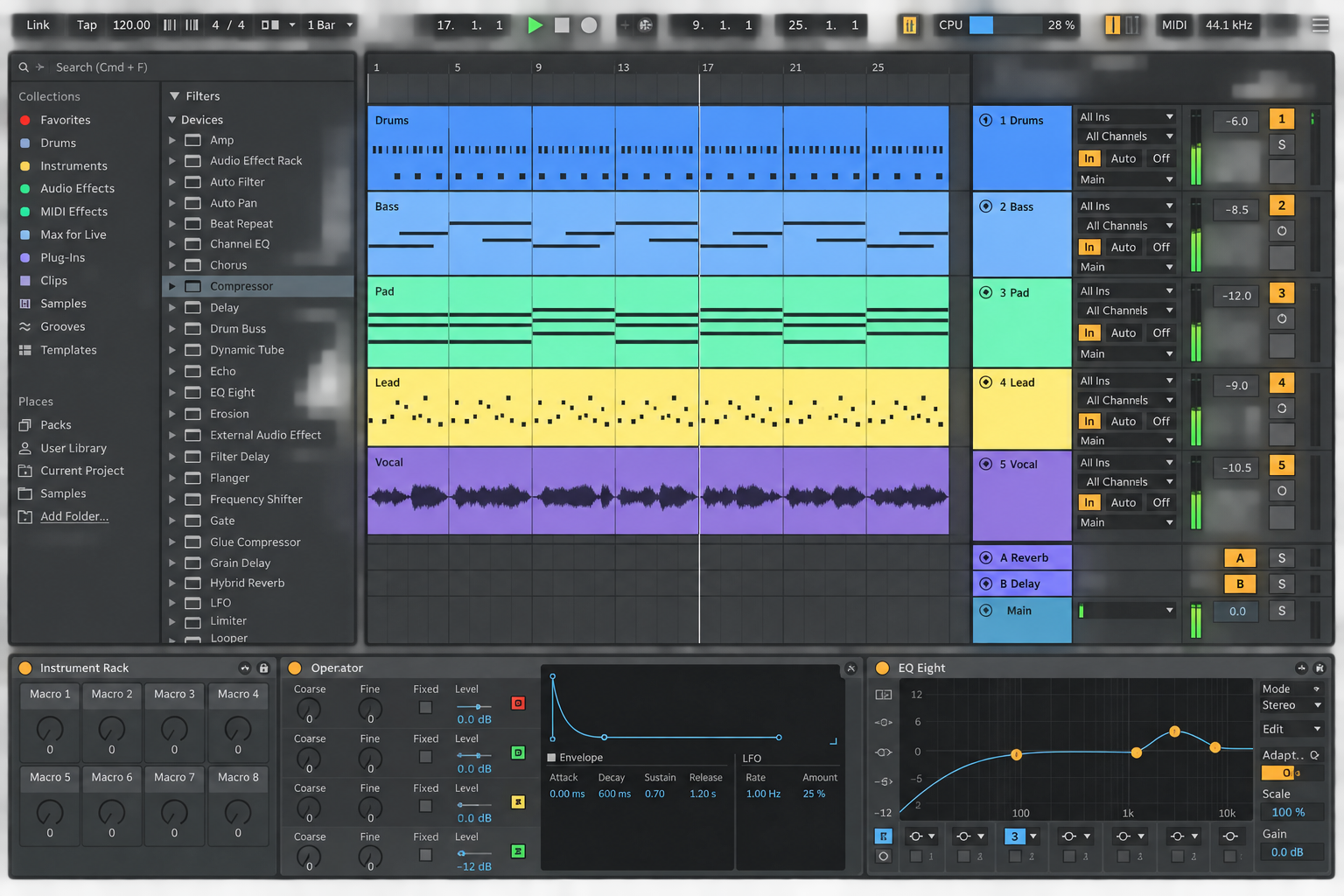

Read Live’s CPU meter correctly
Live’s CPU percentage is not the same number shown for the application in Task Manager or Activity Monitor. The Live 12 manual explains that its meter is based on the time required to process an audio buffer. If the calculation cannot finish before that buffer must play, the stream can develop a gap or click. The meter covers audio processing, not every task the computer performs.
Click the CPU meter and enable Current. Average shows sustained load; Current makes brief processing peaks easier to spot. Replay the same section several times. Repeated peaks at each crackle, with Disk staying dark, make CPU and buffer settings the next things to test—not a conclusive diagnosis.
A low computer-wide CPU number does not rule this out. One serial device chain can miss its audio deadline while other cores have room, and system activity can interrupt audio processing. Close expendable applications for the test. If the pattern points to processing, follow the Current CPU and device-chain checks rather than buying RAM on the strength of one meter reading.
Change the buffer as a controlled test
A buffer that is too small leaves less time for Live and the driver to prepare the next block of audio. Ableton’s current crackles and dropouts guide recommends increasing Buffer Size incrementally and testing playback at each value. Use that as an experiment:
- Record the current buffer value and the exact loop that crackles.
- Increase the buffer by one available step.
- Replay the same loop with the same devices and output.
- Stop when playback is stable, then keep the lowest stable setting appropriate for the job.
A larger buffer adds monitoring latency. That may be acceptable while mixing but uncomfortable when playing an instrument through Live. The recording-latency guide explains that trade-off. On many Windows ASIO interfaces, adjust the buffer in the manufacturer’s control panel, opened through Hardware Setup in Live’s Audio Settings when available.
There is no universal 128-, 256- or 512-sample fix. Use a supported setting offered by the driver; Ableton recommends power-of-two buffer values on Windows. Keep the sample rate unchanged during this test. Also leave Driver Error Compensation at 0.00 ms unless you have measured a specific correction: it is not a general crackle or monitoring-latency cure.
Find the track or device causing a CPU peak

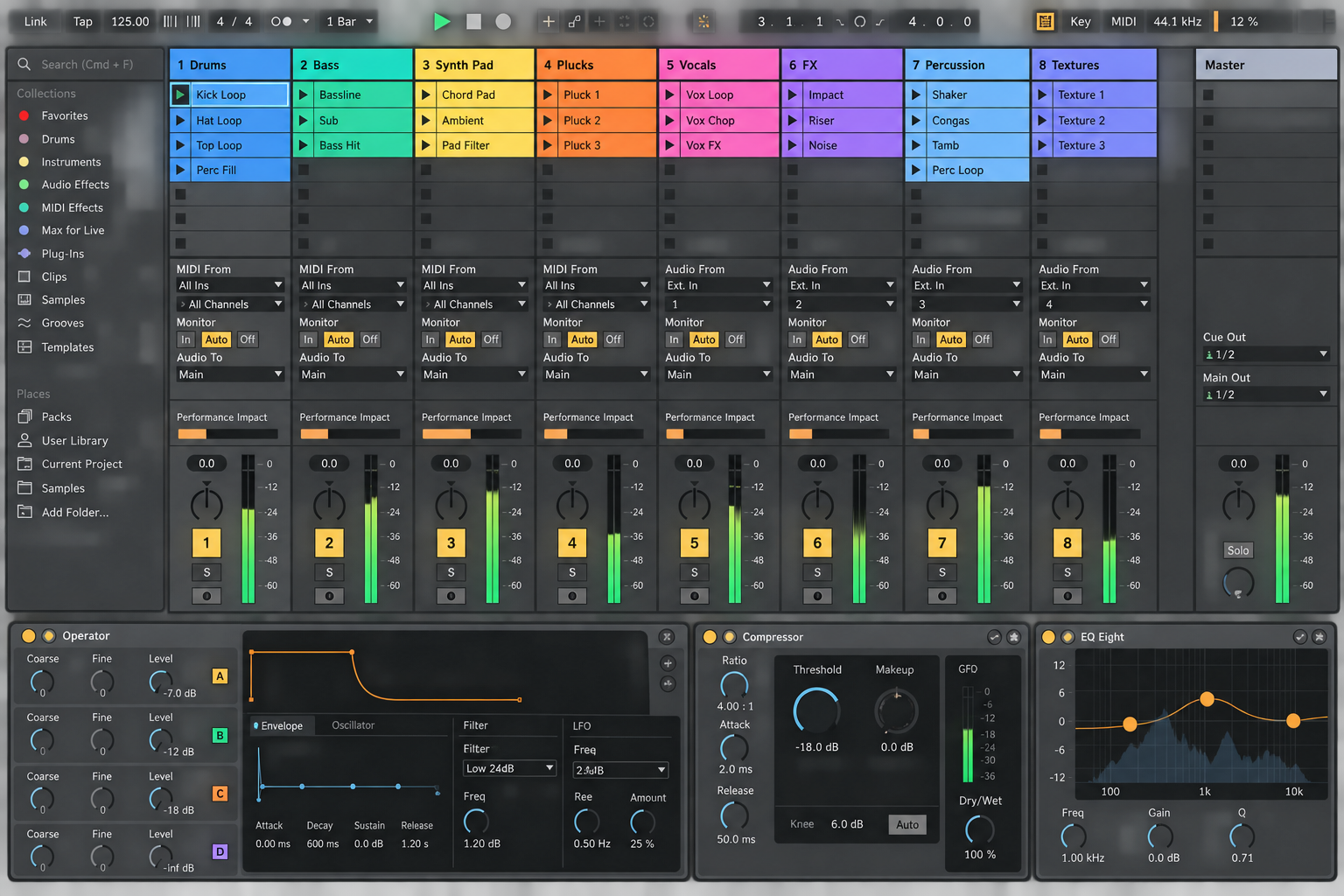

In Live 12, open the Mixer Config menu with the triangle at the bottom right of Live and enable Performance Impact. Ableton’s CPU Meter guide shows the current menu. The six-block meters indicate relative track load, not a percentage or proof that the brightest track caused the fault. Play the actual passage, with the relevant clips and devices active.
- Save a separate Set version before testing its devices.
- Start with a track whose Performance Impact rises repeatedly at the crackle.
- Lower the listening level first: bypassing attenuation or limiting can make the output louder. Deactivate one device using its Device Activator in Live, then replay the same passage. Muting a track or using a plug-in’s own bypass is not an equivalent CPU test.
- Restore devices that do not affect the fault. Listen as well as watching the meter: disabling an instrument removes its sound and can change work farther down the chain.
- If a clip-bearing track is the confirmed bottleneck, freeze it when the editing trade-off is acceptable. Also check shared Group, Return and Main processing; these are not ordinary clip tracks to freeze.
Ableton specifically notes that Complex and Complex Pro Warp modes can be demanding, even when no obvious warping is heard. Check the clips on the high-impact track, but change Warp mode only after a listening comparison; a cheaper mode is not automatically the right musical result.
For a problem confined to one Set, test its plug-ins and Max for Live devices before reinstalling Live. Record their versions and check the developer’s compatibility notes and relevant fixes. Back up the project, update one affected component if justified, and retest. The last plug-in in a chain is not automatically responsible.

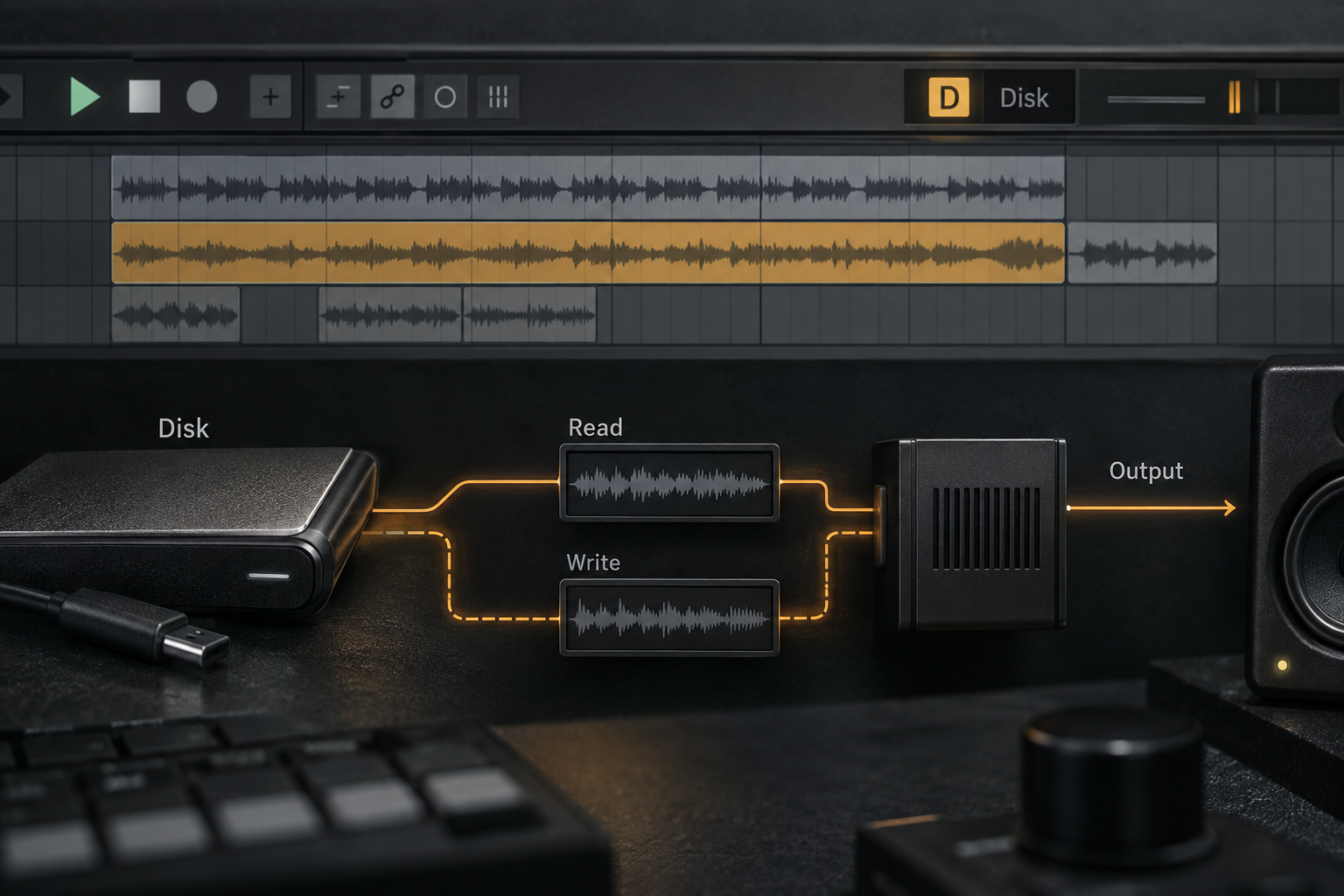

Treat the flashing D as storage evidence
The Disk Overload indicator is separate from the CPU warning. It normally signals that audio could not be read or written fast enough. Playback may break up, and a recording can contain gaps. Treat it as a reason to investigate streaming—not proof that the physical drive is defective.
First check the installed Live version if the fault starts when you launch playback from a locator. Live 12.4.5’s release notes list a fix for dropouts and a blinking disk indicator specifically with Transient Mode inside Beats Warp mode and locator-triggered playback. That narrow fix is not a promise that updating will cure every Disk warning. Next, check where samples and recordings live. Keep cloud-hosted audio available locally, let downloads finish, and pause competing sync or backup transfers during the test; resume protection afterward.
The official Disk Overload guidance recommends reducing simultaneous audio streams or using RAM Mode for selected clips. RAM Mode moves sample playback from disk to memory; too many large samples can exhaust available RAM. Use the disk-load isolation checks before changing the whole project or replacing storage.
Separate the audio interface from the Set
Save the Set, stop playback and lower speaker/headphone levels before changing the audio device or its connections. Compare the same passage through the computer’s built-in output, as Ableton recommends in its crackles guide. Record both configurations: driver, sample rate, buffer and monitoring path. Match the rate and buffer where possible; if you cannot, the comparison changes more than the interface. Clean built-in playback narrows the investigation to the external setup, but does not prove a hardware fault or identical processing load.
- On macOS, choose the built-in Audio Output Device in Live’s Audio Settings. On Windows, the interface’s native ASIO driver may not expose built-in audio; a different compatible driver may be needed for that comparison. Do not replace a working interface driver just to make this test possible.
- For normal Windows interface use, prefer its manufacturer’s ASIO driver when available. Record the installed driver and firmware versions, then check compatibility and relevant updates before changing either.
- Try a direct computer connection where possible. If a hub is necessary, check its power and compatibility; do not assume every hub is faulty.
- Test one known-good data cable and then another compatible port. Change only one item at a time.
- Repeat the passage after each change. Keep the buffer and sample rate fixed within each driver where possible, and write down unavoidable differences.
If both outputs crackle, return to the CPU/buffer, sample and Set-specific tests. If only the external setup fails, send the manufacturer the comparison, including both drivers, rates and buffers. “Built-in audio is clean at a larger buffer” is weaker evidence than a matched test, and should be reported that way.
Use the symptom pattern to shorten the search
- A click at the same musical position: check clip edges and the source audio as well as the device or automation activated there. A repeated position alone does not prove CPU overload.
- Regular silence or noise: check whether a plug-in is in demo or trial mode.
- Gaps in the recorded file: replay the file to distinguish damaged audio from monitoring trouble, then check the input path, recording drive and simultaneous disk traffic.
- Only live input monitoring crackles: test buffer and interface configuration with the same input and processing active.
- The failure follows an interface change: compare the driver, rate and buffer before testing cables, ports and hubs.
- A laptop deteriorates as it heats: use appropriate mains power and unobstructed ventilation. Thermal or power throttling can reduce processing capacity.
What not to do first
- Do not reinstall Live before identifying a reproducible symptom. Reinstallation does not distinguish storage, processing and driver causes.
- Do not change sample rate mid-test. A lower rate can reduce load, but record the original value and check the musical and hardware consequences separately.
- Do not freeze every track or put every sample in RAM. Both can hide the cause and create storage or memory costs.
- Do not update every component together. Back up the project and retest one justified change at a time.
The Fix Ableton Live hub keeps these symptom paths separate. Once your evidence points clearly to CPU, storage or a plug-in, move to the deeper page for that component instead of repeating the broad checklist.
Resource impact: follow the overloaded resource
Freeze reduces repeated instrument, device and clip processing, but creates audio files that need disk space and playback throughput. Keep an editable Set and check the result before committing to a bounce. The Freeze, Bounce and recovery comparison covers the current commands and their limits.
RAM Mode is a selective disk-to-memory trade. Check system memory pressure after enabling it for a few relevant clips; if memory becomes tight, undo that test instead of enabling it across the Set.
The size of the project folder does not tell you how much audio streams at once. Reduce unnecessary simultaneous reads or writes only when Disk activity and playback tests support that diagnosis.
Once a change helps, replay the demanding passage several times, then test the whole song and the actual recording or performance setup. A clean ten-second loop is a useful checkpoint, not a guarantee that the entire Set is ready.
If none of these tests isolates the fault, keep the log and a minimal copy that still reproduces it. Send Ableton or the interface/plug-in developer the relevant versions and comparison. Avoid adding “optimization” utilities or disabling security controls without evidence.
FAQ
Why is Ableton crackling even when the computer CPU looks low?
Live’s CPU meter measures whether audio processing finishes within each buffer, while Task Manager or Activity Monitor measures broader system activity. A short real-time processing peak, one expensive track, a driver interruption or a buffer that is too small can produce a crackle even when the computer-wide average looks modest.
What buffer size stops crackling in Ableton Live?
There is no universal buffer value. Increase Buffer Size incrementally and replay the same demanding section after each change. Keep the lowest stable value that suits the job, because a larger buffer normally adds monitoring latency. On many Windows ASIO interfaces, change it in the interface control panel.
What does the D indicator in Ableton Live mean?
Disk Overload, shown as D in some illustrations and Disk in the help image above, normally signals an audio read/write problem. It can accompany playback dropouts or recording gaps, but does not prove a failing drive. Live 12.4.5 also fixed a specific Beats Warp Transient Mode and locator-triggered playback issue with a blinking disk indicator.
How do I tell whether an audio interface causes Ableton dropouts?
Compare the same passage through built-in audio and record the driver, buffer, sample rate and monitoring path for both outputs. Match settings where possible. Clean built-in playback points toward the external configuration, driver or connection, not necessarily broken hardware. If settings differ, include those differences when contacting support.
Should I freeze every track when Ableton crackles?
No. Use Current CPU, Performance Impact and one-device-at-a-time tests to locate the processing bottleneck. Freeze a confirmed clip-bearing track if that fits the workflow. Group, Return and Main processing needs separate attention. Freezing creates audio files and does not repair an interface or storage problem.
